REVIEW & DISASSEMBLY OF THE BEATS BY DRE PILL

March 4, 2013

WhiteBoard Critique of the “Beats

BY DRE PILL

Beats by Dre has taken the headphone market by storm.  Celebrities, the Olympic team, and the average Joe on the bus, can be caught wearing a set of their stylish headphones.  However, Beats makes more than just headphones.  The Beats Pill is the extension of the head phone collection that brings the rest of the room in on the music experience.

The Beats Pill is a compact speaker for listening to music and answering calls.  One can connect to the Pill either wirelessly, with Bluetooth, or through the supplied 3.5 mm head phone jack.

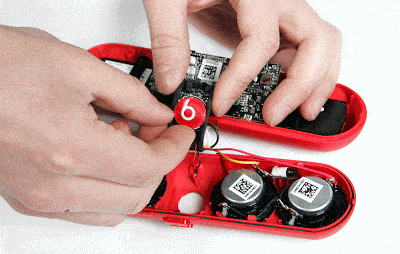

A breakdown of all the parts.

The three buttons on the round face are connected to two separate circuit boards that are fastened to a molded part.

The prominent Beats button in the front is backlit, illuminating the “b” icon with four small LEDs mounted to the circuit board.

Because of the rounded shape, it was necessary to extend the power button with a molded cruciform that also holds the spring to reach the tact switch on the circuit board.  There are two 2100mAh lithium batteries that are split across the housing to provide balance and power to the product.  The Pill provides about 6 hours of great sounding music anywhere.
